WF 750 – FLÄNS

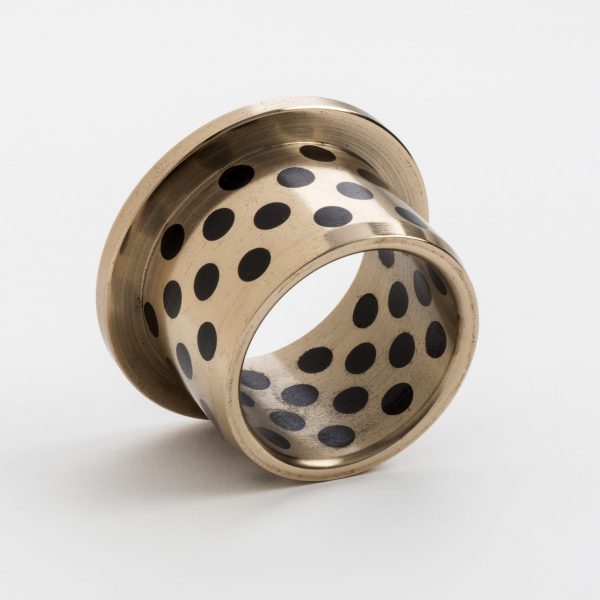

Ett självsmörjande flänslager i slitstark brons.

Självsmörjande flänslager i extra slitstark brons.

Egenskaper
– Underhållsfritt glidlager
– Lämplig för höga belastningar
– Klarar extrema temperaturer
– Lång livslängd

Användningsområden ex.
Maskin- och ståltillverkning, pressverktyg, verktygsdetaljer till bilindustrin mm.

Utföranden
Cylindriska lager, flänslager, glidplattor

Kategori: Glidlager Taggar: Fläns glidlager, Självsmörjande, Solida Glidlager

Beskrivning

WF 750 är tillverkad av extra hård och slitstark brons med inbyggda självsmörjande grafitkutsar för underhållsfri drift. När det gäller höga belastningar och små rörelser där smörjning är svår att genomföra är detta lager en utmärkt lösning. Smörjkutsarna täckar ca 25-30% av lagerytan. WF glidelement finns tillgängliga i många utföranden och kan även tillverkas i andra legeringar för att möta specifika applikationsbehov.

Smörjning
WF 750 är underhållsfria men infettning av glidytorna vid montering rekommenderas. Vanligen förekommande smörjfetter eller oljor kan användas. För optimal funktion och livslängd är det viktigt att motgående ytor är ordentligt rengjorda vid montering.

Specialutföranden
Ritningsdetaljer, glidplattor, vinkellister mm tas fram mot beställning. Kan även tillverkas i andra legeringar. Kontakta oss gärna för offert eller mer information.

TEKNISK DATA
Material:	CuZn25AI5Mn4Fe3 + grafit
Standard:	(Tol F7/m6)
Glidskikt (tjocklek):	Homogen med grafitinlägg
Brottgräns Rm:	750-800N/mm²
Sträckgräns Rp 0.2:	450-550 N/mm²
Förlängning i % A10:	5-8%
Hårdhet:	190-220 HB
Friktionskoeff:	-
Värmeledningsförmåga:	50W/m·K
Temperaturområde:	-40°C/300°C
Max belastning, statisk:	150N/mm²
Max belastning, dynamisk:	90N/mm²
Max glidhastighet (med smörjfett):	1 m/s
Pv-värde, Mpa x m/s, kont / int	3.3


Motgående material
Rekommenderad axelhårdhet:	>150 HB
Rek ytfinhet axel (Ra)	1.6
Rek axeltolerans	e7-f7
Inbyggnadsmått hus:	H7

550

Tillgänglighet för nedan angivna dimensioner kan variera utifrån efterfrågan. Vid större förbrukning kan alltid dimensioner och utföranden anpassas enligt behov.

Artikel nr.	d	D	L	D1	T
